Structural
GS 152
#F70TGS152
High-load ground support tower. 12 m height and up to 5000 kg max. load
Maximum Load
0kg/
Folded Height
0m/
Maximum Height
0m/

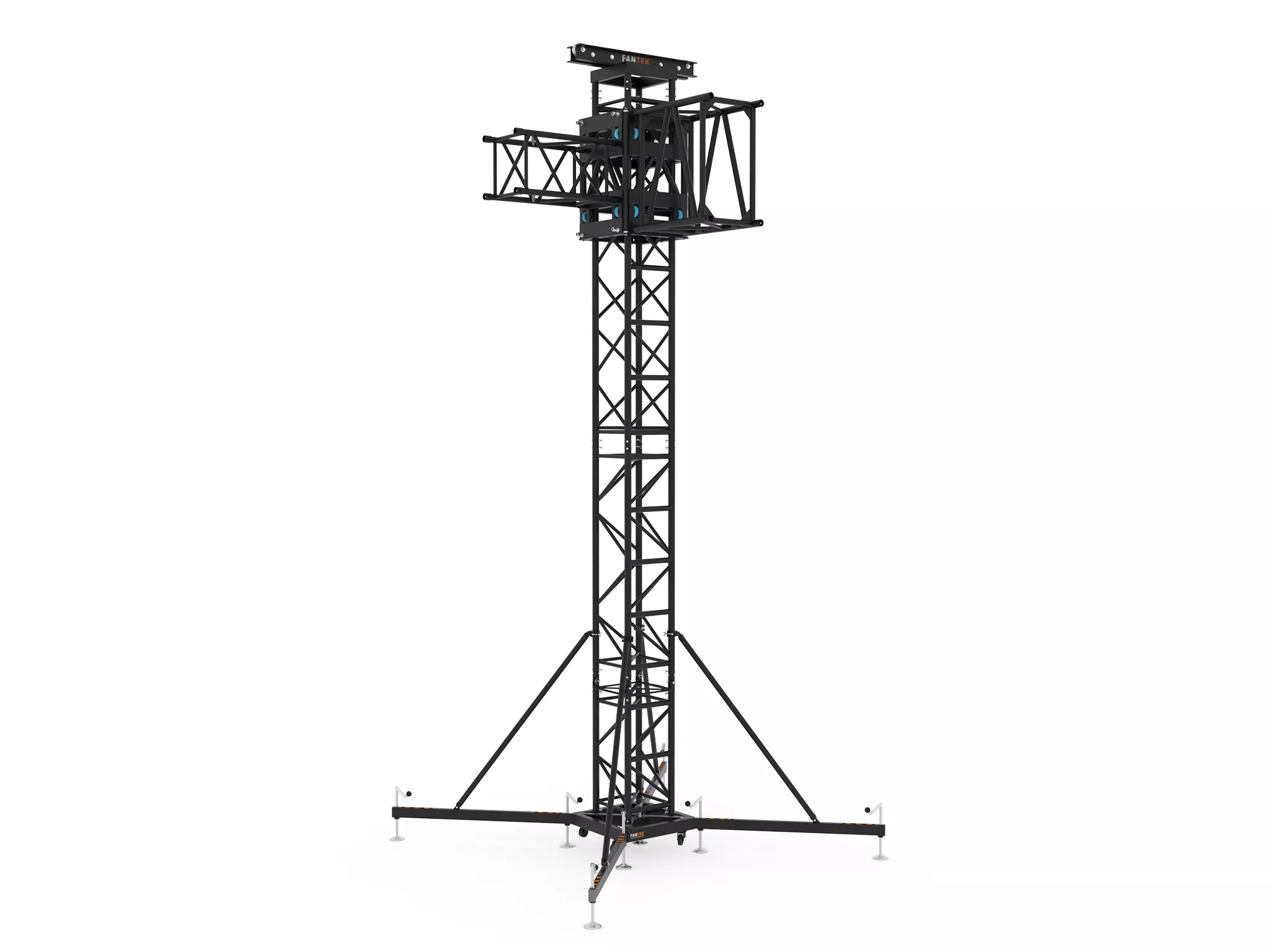

GS 152 is a high-load ground support tower with a GS52Q truss mast. The crossbars on one side of the truss used for this tower are arranged like a ladder to facilitate access to the elevated truss via the tower, in compliance with the necessary preventive measures.
The tower can be used with our high-load truss systems by means of the adaptation system for such use.

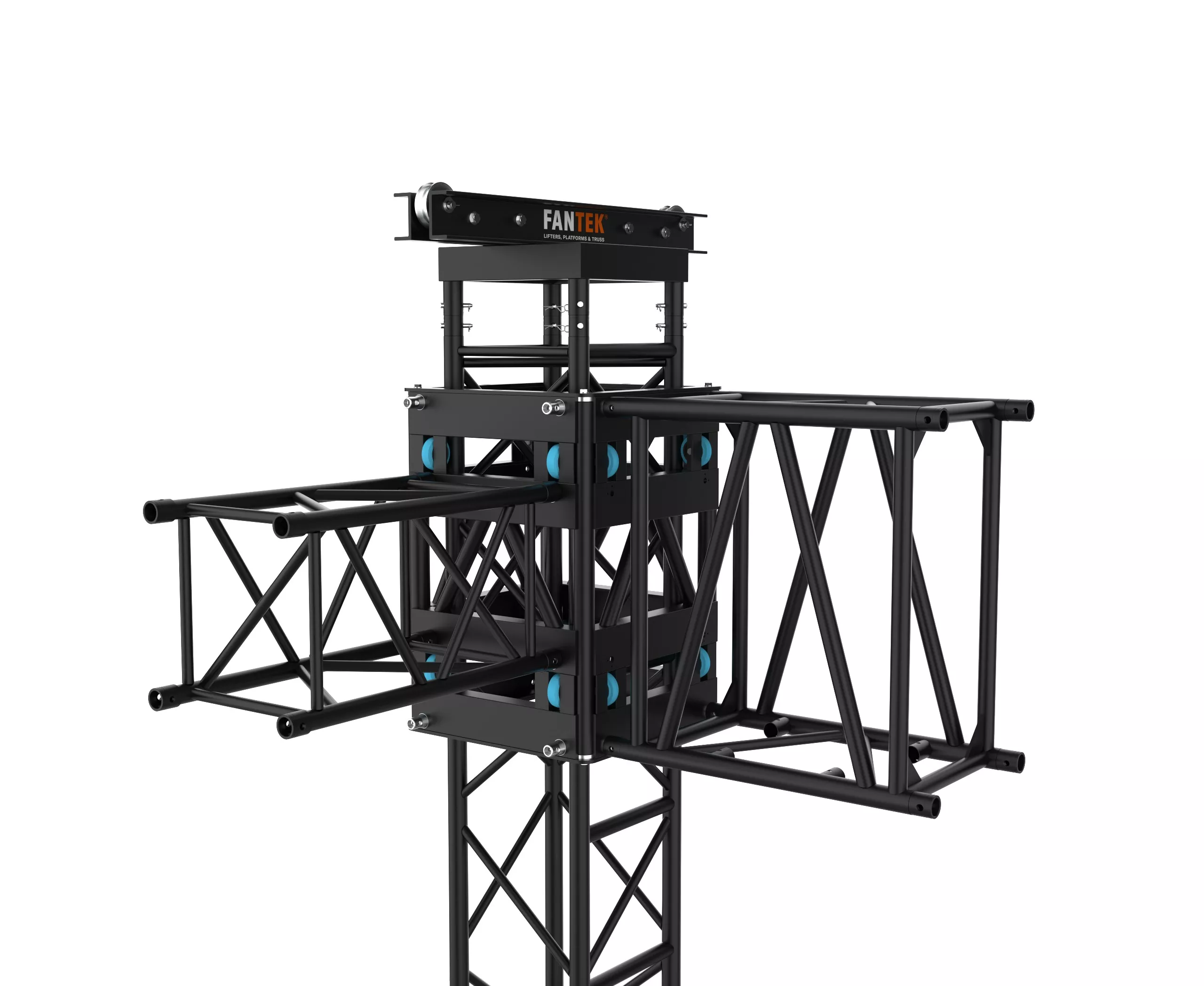

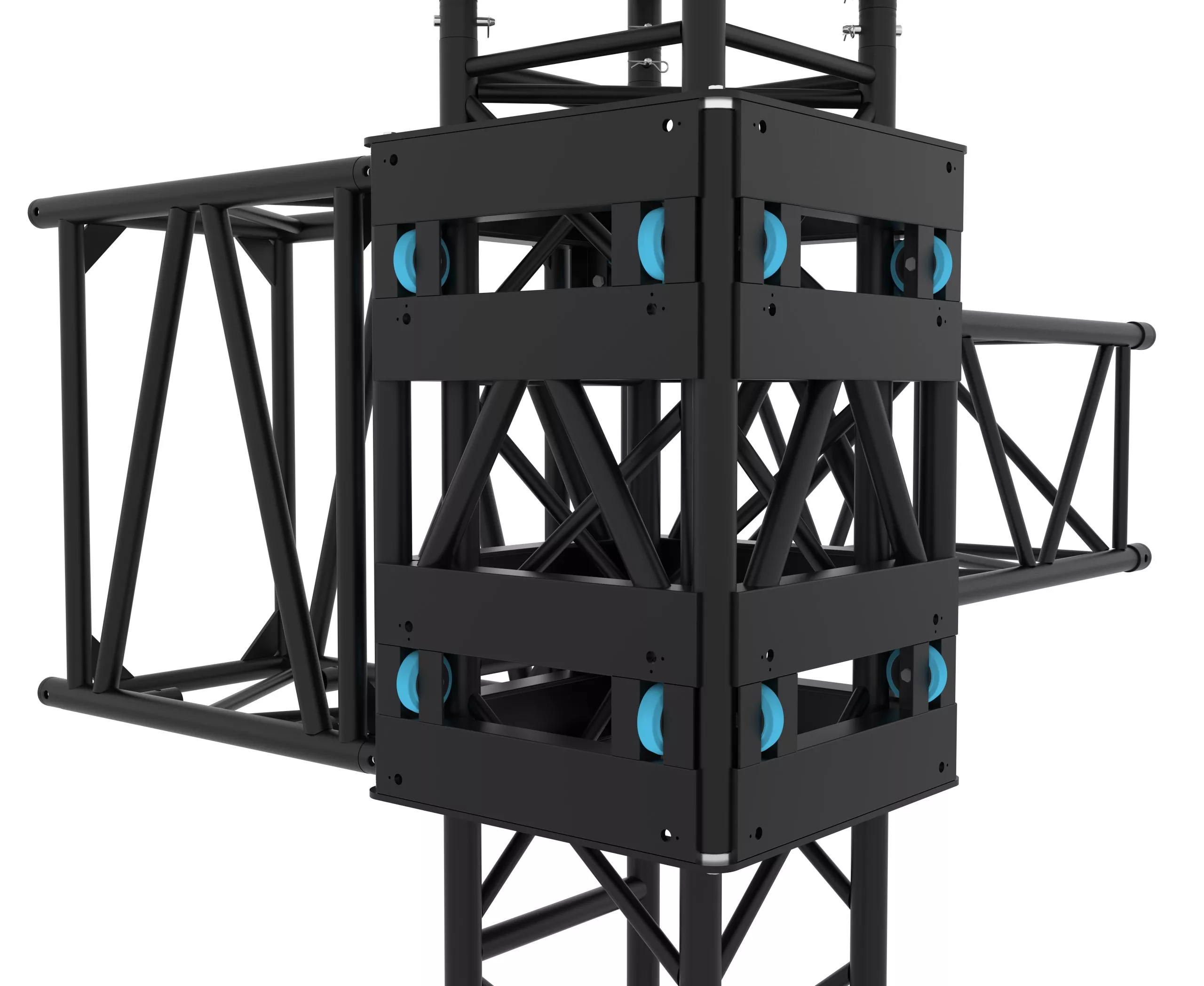

The welded structural carriage offers much greater precision and strength than conventional ones.
The lifting system is through electric chain hoist (sold separately)
Main information
- Ground support for high-load
- 12 m height
- Up to 5000 kg max. load

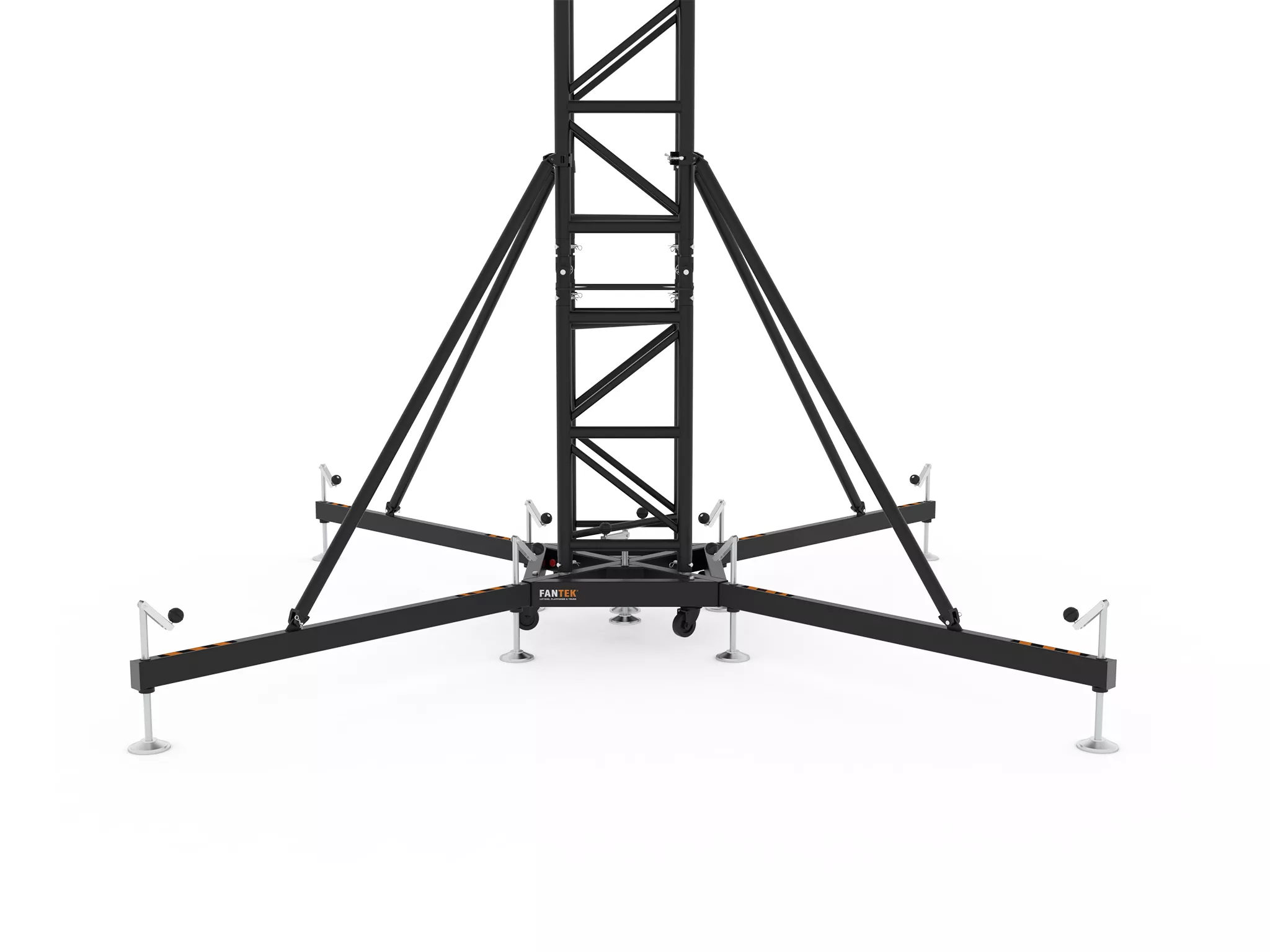

- Base extended: 3 x 3 m
