Rectangular
FK3040R H
#F70FKR050
#F70FKR050B
#F70FKR100
#F70FKR100B
#F70FKR200
#F70FKR200B
#F70FKR300
#F70FKR300B
Rectangular truss of 300x400mm with 5 tubes 50x4mm Secondary tube 25x3mm. Length 0.5/1/2/3 m. Silver or black. F SERIES
Maximum Load
0kg/
Folded Height
0m/
Maximum Height
0m/

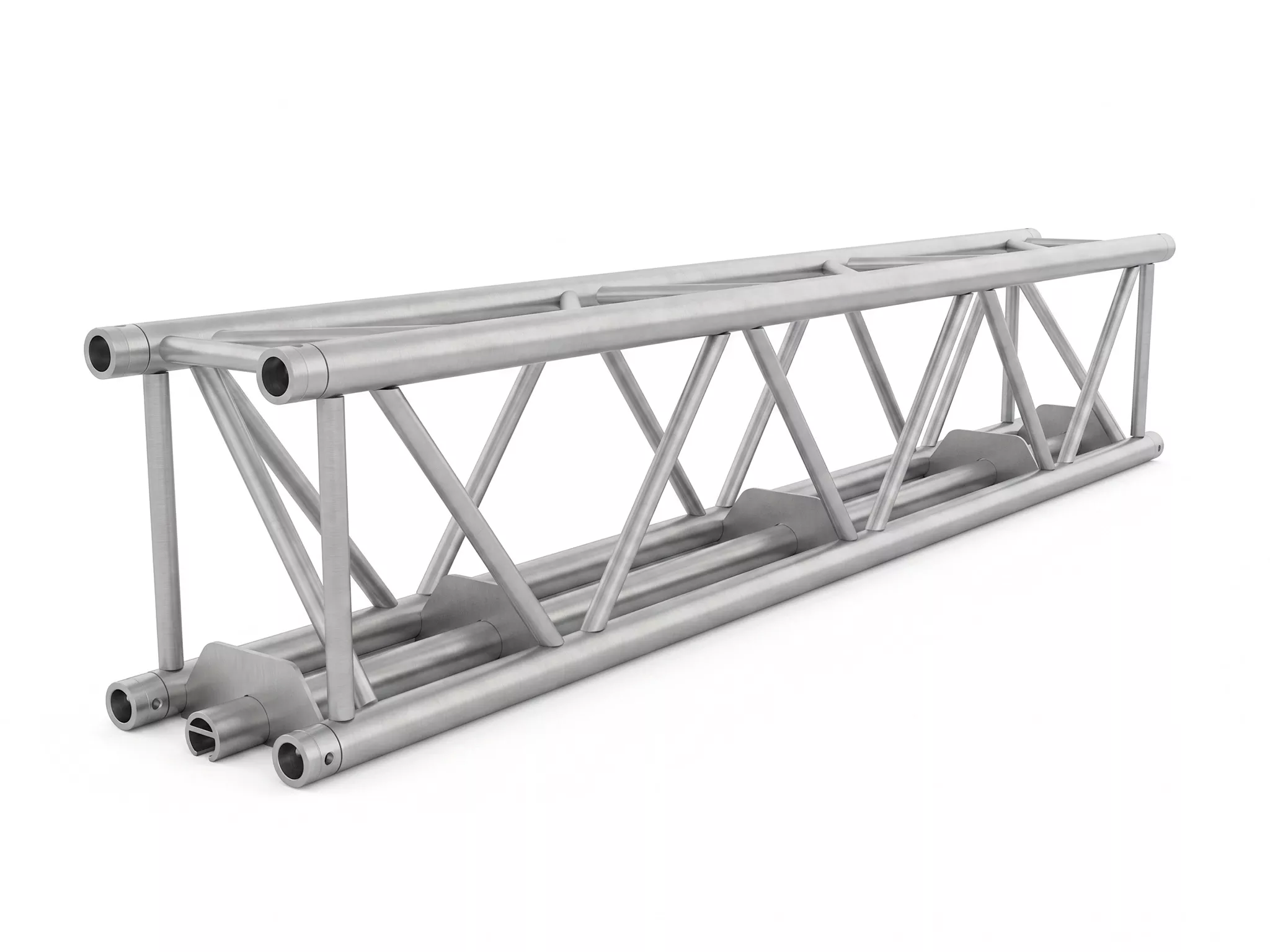

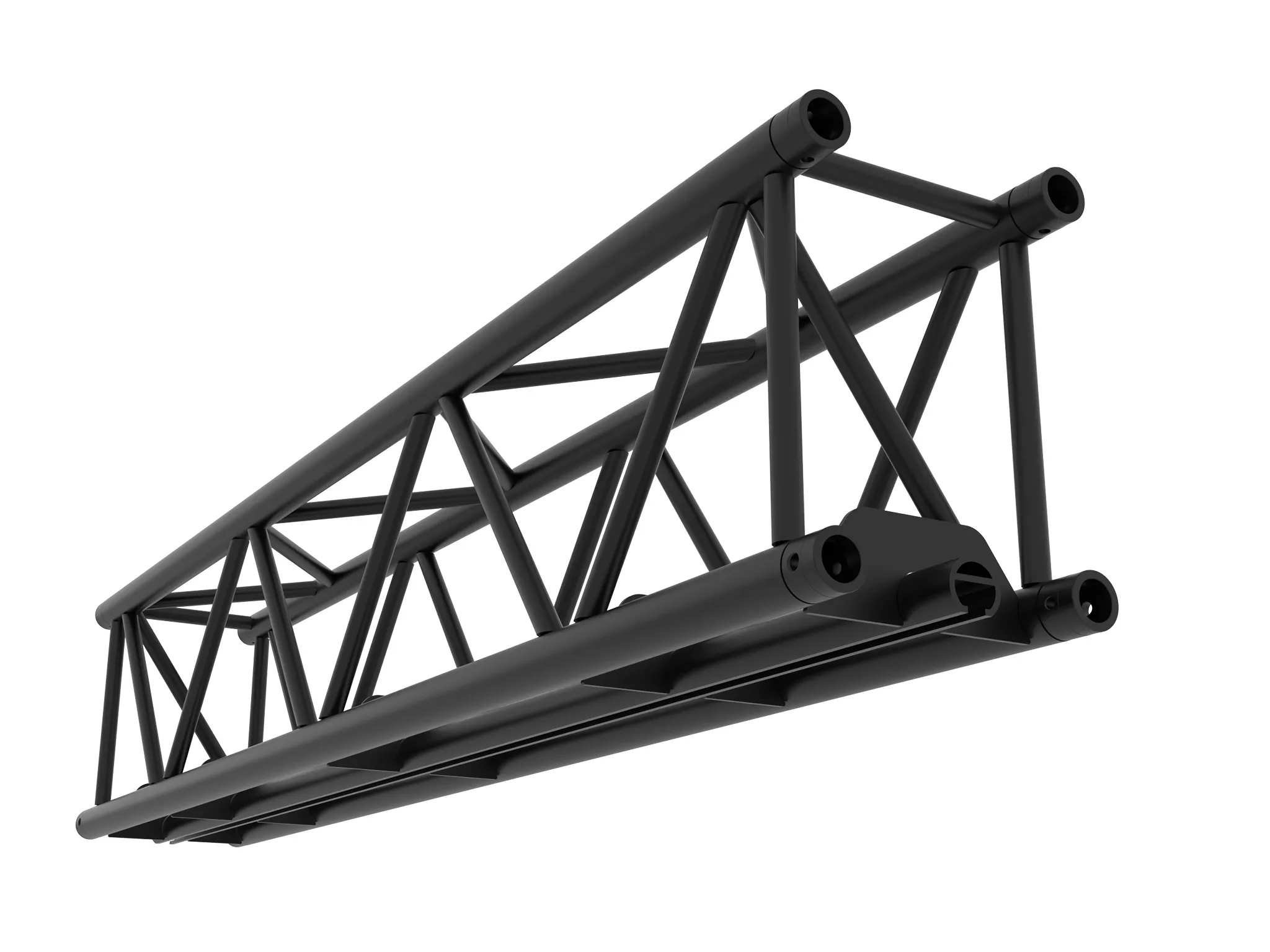

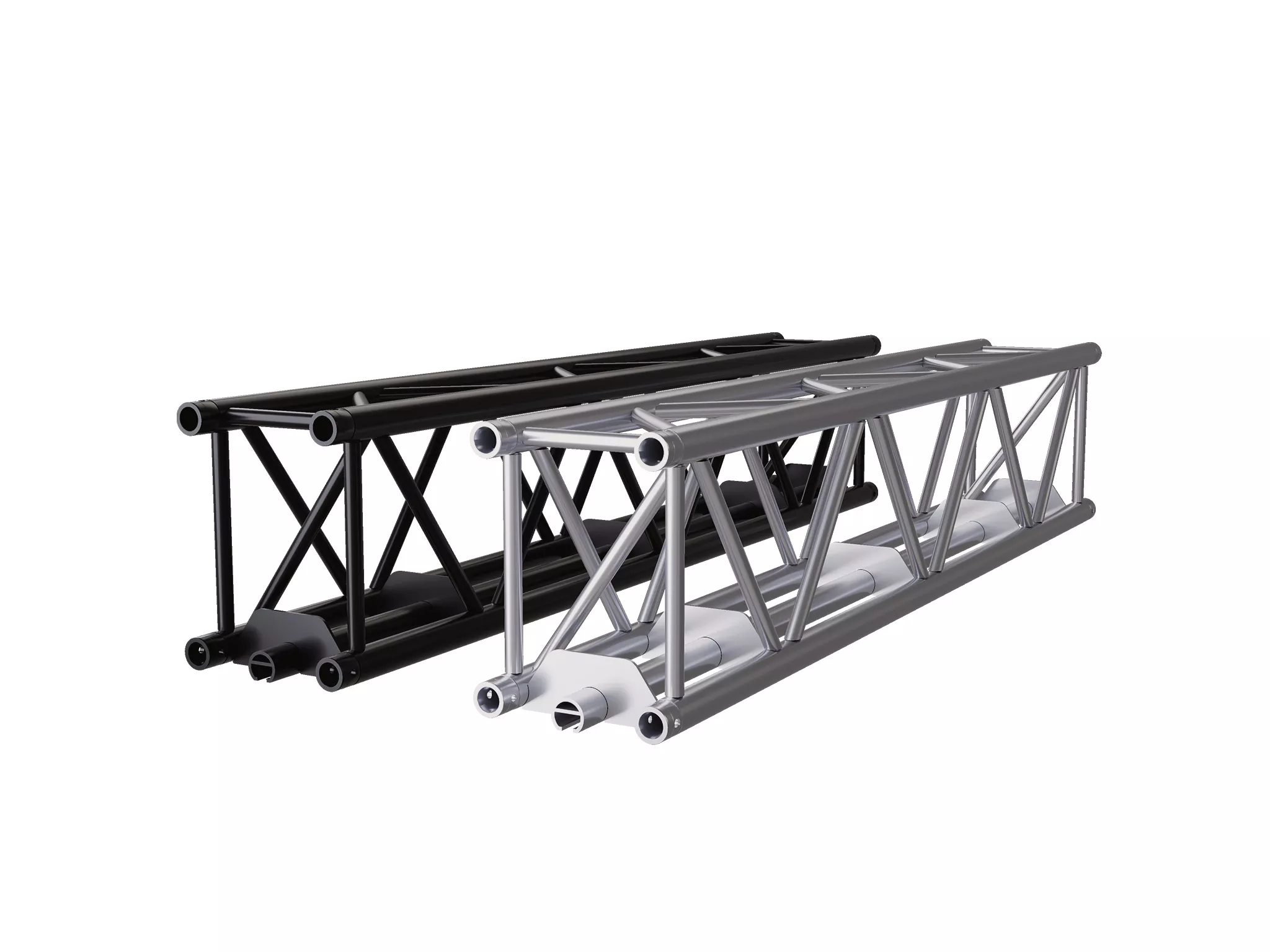

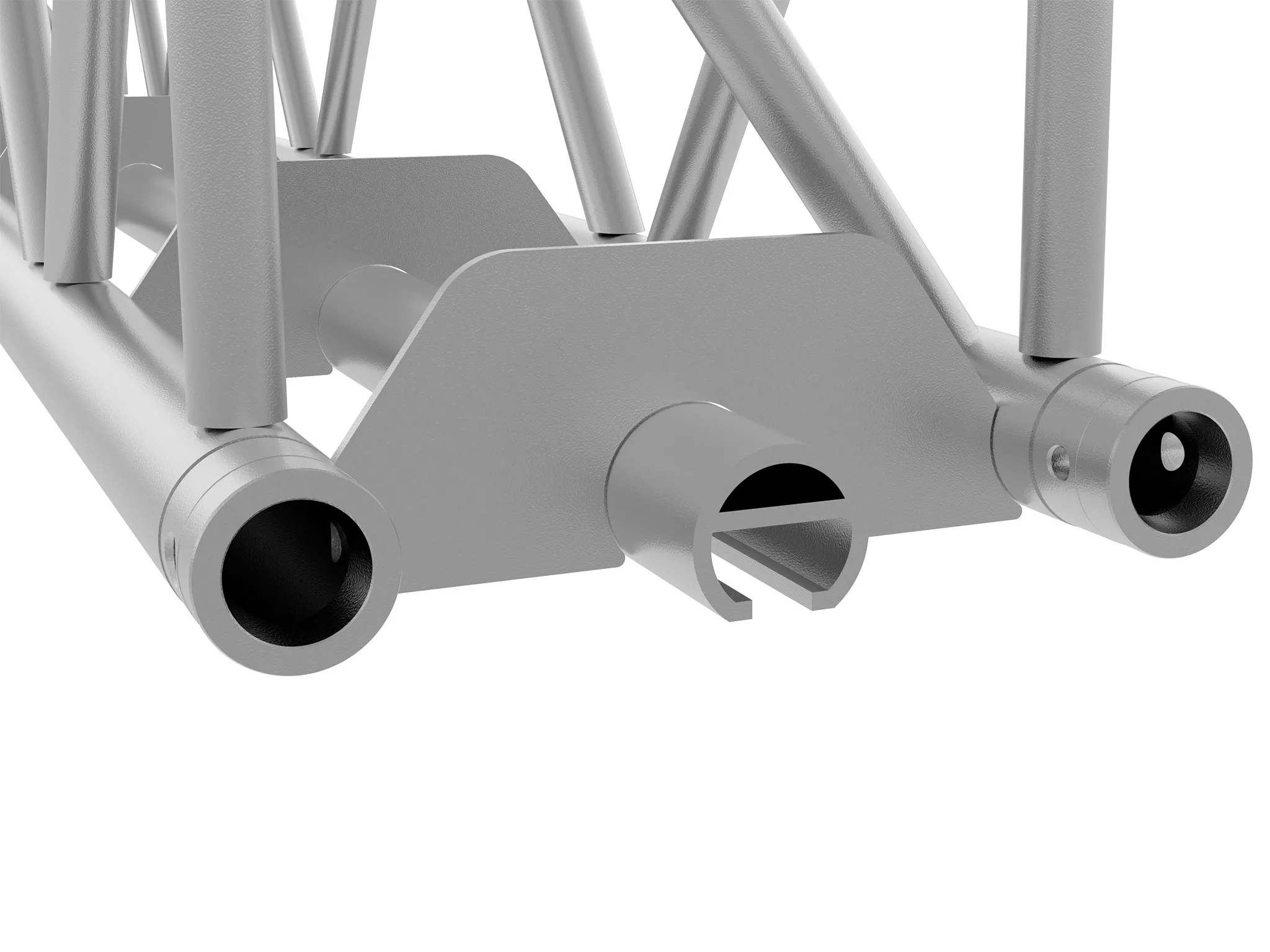

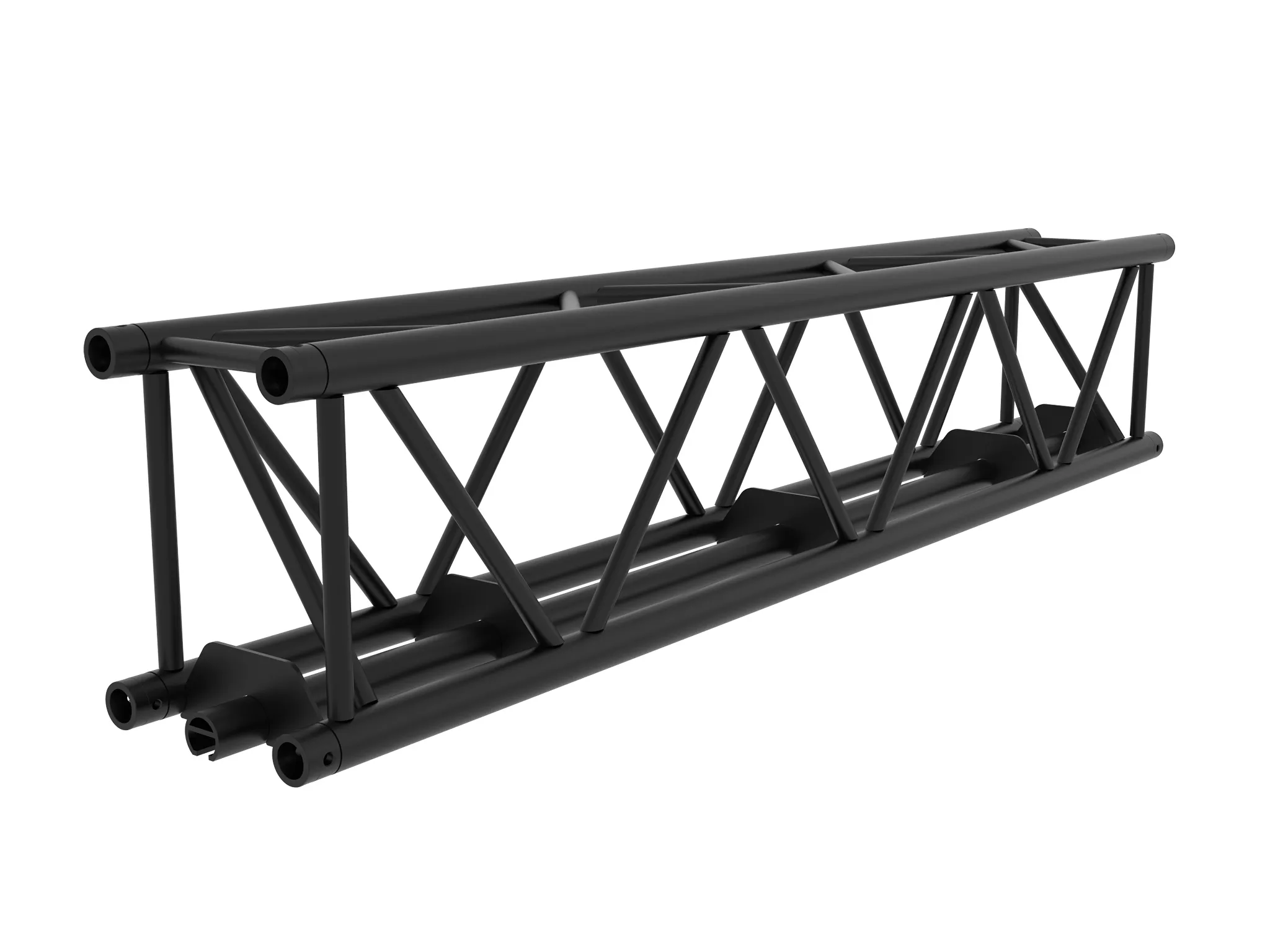

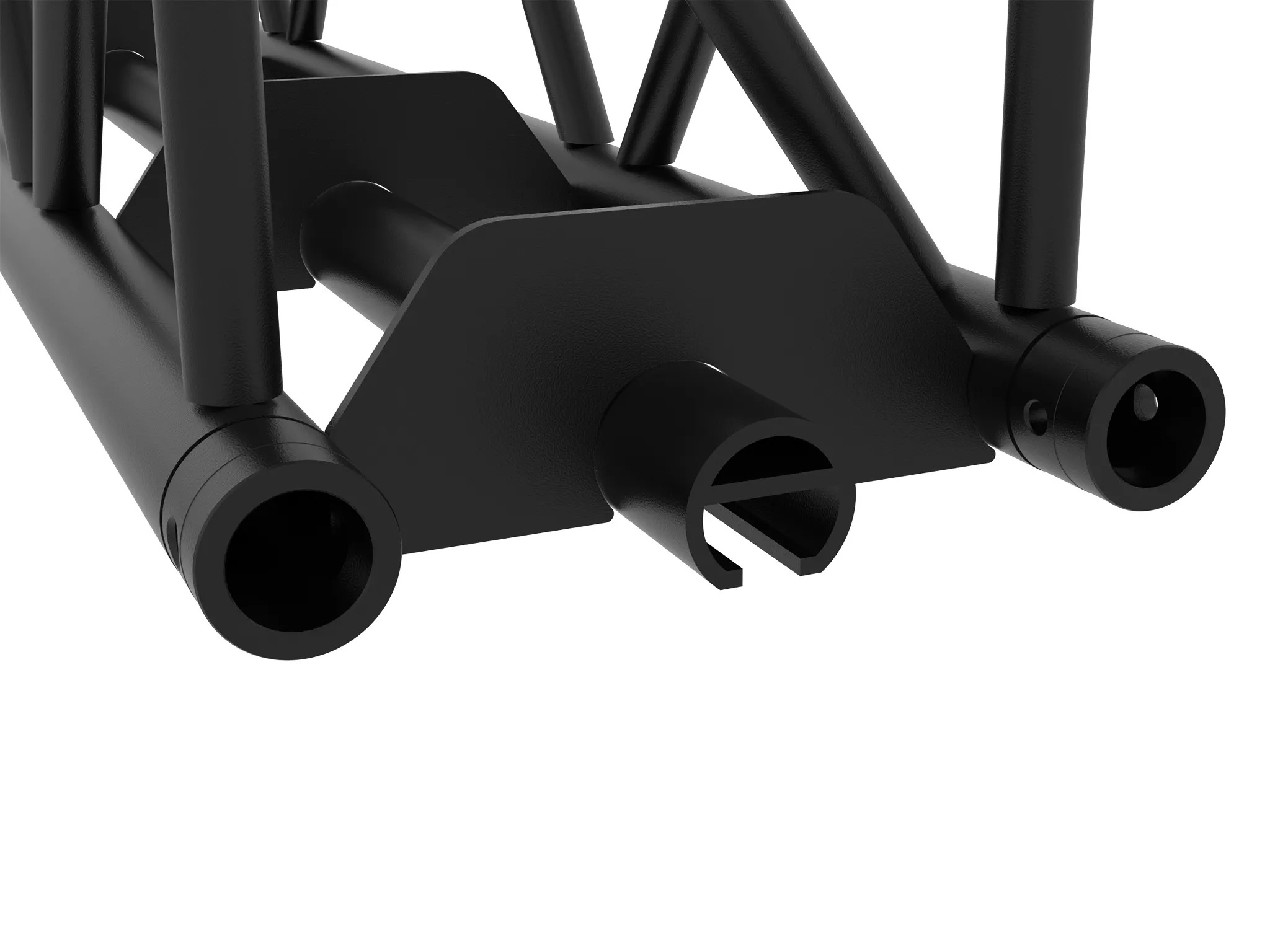

Section of aluminium square truss structure measuring 400 mm high and 300 mm wide, manufactured with main tube of 50 mm in diameter and 4 mm thick, and auxiliary tube of 25 mm in diameter and 3 mm thick. Especially suitable for assemblies with led screens. CBC50 conical connection system. It is available in 0.5 m, 1 m, 2 m, and 3 m lengths, and in silver or black. Includes 4 double cones, 4 pins, 4 threaded pins and 4 'R' safety clips. F SERIES compatible.
Main information
- Standard sizes: 0.5 / 1 / 2 / 3 m.
- Other sizes available upon request.
- Available in silver or black.
- Other colours available upon request.
| Main Tube Section | 50x4 mm/ 50x4mm |
| Main Tube Alloy | EN AW 6082T6 |
| Braces Section | 25x3 mm/ 25 x 3 mm |
| Braces Alloy | EN AW 6082T6 |
| Weight | 12,05 kg/m |
| Surface Area Complete Truss | 28,9 cm2 |
| Coupling System | CBC50 |
| 1.64 feet - Weight | 7,26 kg |
| 3.28 feet - Weight | 12,61 kg |
| 6.56 feet - Weight | 22,16 kg |
| 9.84 feet - Weight | 31,96 kg |
| 1.64 feet - Volume | 0,06 m3 |
| 3.28 feet - Volume | 0,12 m3 |
| 6.56 feet - Volume | 0,24 m3 |
| 9.84 feet - Volume | 0,36 m3 |
| Colour | Silver/Black |
